| Place of Origin: | CHINA |
| Brand Name: | bagplastics@vip.163.com |
| Certification: | ISO 9001: 2000, SGS, HACCP, EN13432 |
| Model Number: | whatsapp:008613780964661 |
| Minimum Order Quantity: | 500 units |
|---|---|
| Price: | NEGOTIABLE |
| Packaging Details: | 1000PCS/CASE |
| Delivery Time: | 15 DAYS |
| Payment Terms: | T/T |
| Supply Ability: | 1 MILLION PER MONTH |
| Ground Cover: | Mulch Film | Greenhouse Cover Film: | Aluminum Foil Bubble Film |
|---|---|---|---|
| Mylar Film Coated Woven Plastic Fabric: | Blackout Canvas Film | Metalized PET PE Laminated Film: | Reflective Mylar Film |
| Black And White Panda Film: | Clear PET Or PE Film | Aluminum Plastic Woven Fabric: | Air Bubble Double Foil Insulation |
| VMBOPP Metalized BOPP Film: | VMPET Metalized PET Film | VMPE Metalized PE Film: | Agricultural Plastic Film |
| Hydroponic Reflective & Insulation Film: | Industrial Metalized Film | Construction Film: | Bubble Foil Insulation |
| EPE Foam Insulation: | XPE Foam Insulation | Foil Fiberglass Cloth: | FSK- Foil Scrim Kraft |
| Foil Woven CLoth: | Pure Aluminum Foil | Metalized Aluminum Foil: | Stretch Film |
| Wine Skin Bag: | Air Inflatable Column Bag | Bubble Envelope Mailer: | Bubble Film |
| Bubble Bag: | Building Insulation Material | Radiant Barrier & Building Sarking: | Lamination Aluminum Foil |
| Multi Layers Foil Insulation: | Swimming Pool Solar Cover | Concrete Curing Blanket: | Blanket |
| Carpet Protective Film: | Plastic Sheet | Builders Film: | Construction Geomembrane |
| Builder's Film: | Builder Film | POF Package Film Stretch Shrink Film: | Shrink Wrap Film |
| Center-fold: | Single Wound | POF Shrink Bags: | Printing On Film |
| Cross-linked Film: | Anti-fog Film | Micro-perforated Film: | Pre-perforated Film |
1. Shrink film thickness and width:
Thickness:10mic, 12.5mic, 15mic, 19mic, 25mic and 30mic etc.
Width:100-2200mm
2. Shrink film grade:
Can be divided into normal grade, medical grade, high strength grade;
Can be made of tubular film, L-type fold film and single film,
Can be processed into tube bags, flat pockets, ladder bags, round bags and so on.
POF Shrink film FEATURES
Cast film, high clarity and shrink rates at transverse direction, well distributed thickness, anti-static treatment for increasing printing and labeling speed.
-Suitable for a broad range of applications: tamper evident seals, Pre-forms, and full body sleeve labels.
-Low shrink initiation temperature.
-Long shell life at recommended storage temperatures.
-Excellent for printing high quality graphics.
-Ideal for high speed applications.
-Can be printed without surface treatment.
-Lighter and more cost effcient than tranditional packaging.
| Thickness | 12mic/50g | 15mic/60g | 19mic/75g | 25mic/100g |
| Wideness | 100mm-2200mm | 100mm-2200mm | 100mm-2200mm | 100mm-2200mm |
| sinlg would length | 3100m | 2667m | 2133m | 1600m |
| center folded length | 1550m | 1332m | 1067m | 800m |
POF film: Center-fold/Single wound/POF shrink bags,Printing on film,Cross-linked film,Anti-fog film,Micro-perforated film,Pre-perforated film etc
POF film Packing details:
one roll of pof heat shrink film in one carton box; tens of cartons in a pallet;
10~12 pallets pack into 1*20 ft. container;
20~22 pallets load into 1*40 ft. container
Characteristics:PE shrink film is made from high-pressure polythene mixed with relevant auxiliary materials through huffing once, so it features tenacity, softness, impact-resistance and unbreakable.
Varieties: We can make tube-film, L-shaped opposite folding film and single layer film according to customers' request, as well as pipe-bags, flat-orifice bags, trapezoid bags.
Main purpose: suitable for packing of beverage, mineral water, beer, stacks, building materials, metalwork, dairy, glass bottles, and other large equipment and goods.
| Width | 250mm-750mm | Tearing strength | In transverse direction ≥40KN/m |
| Thickness | 40um-250um | In machine direction ≥40KN/m | |
Shrinkage rate | In transverse direction 15%-20% | Tensile strength | In transverse direction ≥12Mpa |
| In machine direction 60%-70% | In machine direction ≥12Mpa | ||
| Shrinkage temperature | 150ºC-220ºC | Breaking elongation | ≥200% |
| Specific weight | 0.93g/cm3 | Interior diameter of roll core | 76mm |
1) Waterproof, Oil-proof, Moisture-proof, Anti-corrosion; Tear-resistance,
Dust resistance.
2) one-six colors printing can be added as per client specs.
3) Product types: single layer, tubing, bags, centerfold rolls.

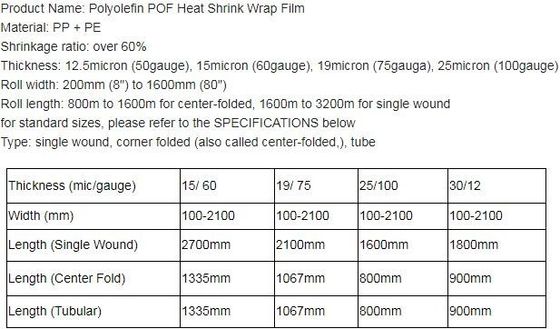

Product Name: Polyolefin POF Heat Shrink Wrap Film
Material: PP + PE
Shrinkage ratio: over 60%
Thickness: 12.5micron (50gauge), 15micron (60gauge), 19micron (75gauga), 25micron (100gauge)
Roll width: 200mm (8") to 1600mm (80")
Roll length: 800m to 1600m for center-folded, 1600m to 3200m for single wound
for standard sizes, please refer to the SPECIFICATIONS below
Type: single wound, corner folded (also called center-folded,), tube
| Thickness | Micron | 12.5micron | 15micron | 19micron | 25micron | |
| Gauge | 50gauge | 60gauge | 75gauge | 100gauge | ||
| Density | g/cm³ | 0.922 | 0.922 | 0.922 | 0.922 | |
| Tensile Property (MD/TD) | ||||||
| Elastic Mouduls | N/mm² | ASTM-D882A | 330/450 | 340/450 | 350/450 | 360/450 |
| Tensile Strength | MPa | ASTM-882 | 110/110 | 110/110 | 110/110 | 105/105 |
| Elongation at Break | % | ASTM-882 | 105/110 | 105/110 | 110/110 | 110/115 |
| Seal Strength | g/cm³ | Internal Method | 610 | 870 | 1025 | 1250 |
| N/mm² | 40 | 57 | 53 | 49 | ||
| Tear Propagation | g/cm³ | ASTM-D1938 | 6 | 5.5 | 9.5 | 14.5 |
| COF film to film | Adim | ASTM-D1894 | 0.2 | 0.2 | 0.2 | 0.2 |
| Free Shrink at 130ºC | % | ASTM-D2732 | 70/70 | 70/70 | 70/70 | 70/70 |
| Optical Property | ||||||
| Haze | % | ASTM-D1003 | 1.1 | 1.3 | 1.8 | 2.3 |
| Gloss | % | ASTM-D2457 | 135 | 135 | 135 | 130 |
1. High transparency, fine luster
2. High shrinkage, up to75%
3. High heat sealing and intensity, suitable for manual, half antomatic and
high-speed antomatic packaging
4. High cold resistance, keep flexible below-50 degree celsius, adapt to
storage and transport in cold weather.
5. Environment-friendly, nontoxic and meets US. FDA standard
6. Prevent damp and dust
7. Low package cost, better than paper box and other materials
1. Food, beverage, household articles packing
2. Drug, health-care products outside or combinative packaging
3. Plastic & hardware package
4. Stationery, toys & books packaging
5. Electronic element, audio and video products packing
High quality POF shrink film
Enterprise Advantage :
Professional high-tech manufacturer
One stop service for machinery and its relative products
POF Heat-Shrinkable Film Features :
> Environment protection ,harmless and nonpoisonous
> Tight sealing and perfect welding performance
> High shrinkage ratio, which reaches by 70%
> Airproof packaging, dust and moister resistance
> Light weight and excellence in flexibility and tensile strength, even thickness
> High transparency and luster
> High impact resistance and excellence in low temperature, aging resistance.
> Excellent thermal sealing and easy wrapping
Available sizes
| Thickness | 12mic | 15mic | 19mic | 25mic | 30mic |
| Width | 150-1100mm | 150-1100mm | 150-1100mm | 150-1100mm | 150-1100mm |
| Length (SW) | 3324m | 2664m | 7462m | 1600m | 1332m |
| Length (CF) | 1662m | 1332m | 1067m | 800m | 666m |
Machine Included in the Production Line :
1. 5-Layer Co-Extrusion Polyolefin Heat-Shrinkable Film Blowing Machine
2. Film Slitting Machine
3. Bag Making Machine
4. Recycling Machine
Product Feature From This Line :
1. Thickness : 12-30 micron( 0.012-0.030mm)
2. Max. Width : 1600 mm
3. Application: Widely applicable for the outer packaging of various products such as food, drink, frozen food, pharmaceuticals, commodities, toys, stationery, audio-visual product, cosmetics etc.
| Products name | PE builder film/polyethylene film/construction film |
| Raw material | Virgin or recyclable LDPE/LLDPE |
| Thickness | 100mic,150mic,180mic,200mic 300mic etc. |
| Color | transparent,orange,black and customize as your request. |
| Main size | 2mx50m, 4mx50m, 2mx100m, 4mx100m, 6mx50m, etc. |
| Packing | wringed with paper core,wraped with PE film,stick label (load pallet as your need) |
| MOQ | 3 TONS |
| Payment | T/T 30% deposit, 70% balance against copy of B/L;100% against copy of B/L after 3times coopeartion,LC at sight... |
| Our products can meet AS2870 standard | |
| If you are interested in ours products, welcomed to send me inquiry, we would reply you all email and quotation | |
| 1.Product: | builder film |
| 2.Material: | PE |
| 3.Weight: | According to the requirements of customers |
| 4.Width: | 1-4 m |
| 5.Regular Size: | 2mx10m*100um,2mx20m*100um, 2mx5 |
